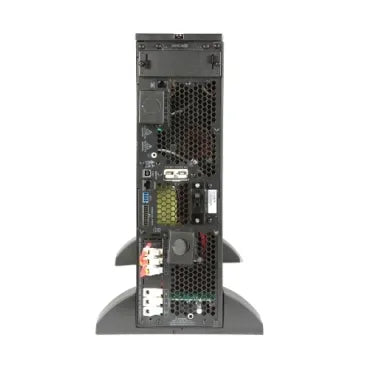

APC online ups 10 KVA 230V Single Phase SRC10KUXI Description
APC Online UPS 10 KVA 230V Single Phase - the perfect solution for all your power backup needs. This powerful UPS ensures uninterrupted power supply, keeping your critical devices running smoothly during power outages. With a price that won't break the bank, this UPS offers the best value for your money. Don't let power shocks disrupt your work or damage your equipment - invest in the APC Online UPS for reliable protection. Whether you're a retailer, wholesaler, distributor, or dealer, this UPS is the ideal choice for your business. Shop now and enjoy a special wholesale price on this top-of-the-line UPS. Based in Delhi but serving customers nationwide, our electricals business is proud to offer the APC Online UPS for sale. Take advantage of our exclusive offer and receive a free battery with your purchase. With its impressive 10 KVA capacity, this UPS is designed to amaze and deliver exceptional performance. When it comes to power backup solutions, APC is a trusted brand known for its quality and reliability. The Online UPS 10 KVA is no exception, featuring a tall tubular design that maximizes performance and efficiency. Whether you're in Noida, Ghaziabad, Gurugram, Faridabad, or anywhere else in India, you can count on us to deliver the best products at unbeatable prices. Don't miss out on this incredible offer - buy the APC Online UPS now and stay powered up!
APC online ups 10 KVA 230V Single Phase SRC10KUXI SpecificationsÂ
Modal No.                 SRC10KUXI
Main Input Voltage          230 V Product or component type   Uninterruptible power supply (UPS) Main Output Voltage        230 V Other Output Voltage        220 V                           240 V Rated power in W           9000 W Rated power in VA          10000 VA Output connector type       Hard wire 3-wire (H + N + E) 1 Provided equipment         Basic UPS signaling RS-232 cable                           Dust filter                           User manual                           Warranty card
Battery recharge time        5 h
Battery type                External battery system Number of battery filled slots 0 Number of battery free slots  0 Extended runtime           0
UPS type                   Double conversion online
Number of power module     0
free slots Number of power module     0
filled slots Redundant                  No
Dimension                  43.3x13.4x70.6 cm (LxWxD)
Net weight                  27.5 kg Mounting preference          No preference Mounting mode              Not rack-mountable Two post mountable           0 USB compatible               No
Network frequency            40...70 Hz auto-sensing Number of input connectors    1 hard wire 3-wire (1P + N + E)                             1 hard wire 5-wire (3P + N + E) Input voltage limits            160...285 V Input current                 81 A (1 phase)                              28 A per phase (3 phases) Load power factor             0.5 leading to 0.5 lagging Input Power Factor at Full Load  0.98
Maximum configurable power   10000 VA
in VA Maximum configurable power   9000 W
in W Output frequency              47...53 Hz for 50 Hz nominal sync to mains                              50 Hz +/- 0.1 % for 50 Hz nominal                                          unsynchronized                               60 Hz +/- 0.1 % for 60 Hz nominal                                          unsynchronized                               50/60 Hz +/- 1 Hz sync to mains                               50/60 Hz +/- 3 Hz sync to mains Wave type                     Sine wave Output voltage tolerance        +/- 1% static and +/- 5% at 100% load step Output overload operation       60 seconds at 125% and 30 seconds at 150% Output harmonic distortion       < 2% for 0 to 100% linear load and
                              < 5% for full non-linear load Efficiency                      94.4 % (full load)                               94.5 % (half load) Harmonic distortion             Less than 2 % Crest factor                     3 : 1 Bypass type                     Built-in static bypass
Ambient air temperature for       0…40 °C
operation Relative humidity                0…95 % non-condensing Operating altitude                0...10000 ft. Ambient air temperature for storage -10…60 °C Storage Relative Humidity         0…95 % non-condensing Storage altitude                  0.00…15240.00 m Acoustic level                    58 dBA IP degree of protection            IP20
Free slots                        1 Emergency power off              Yes
Unit Type of Package 1             PCE Number of Units in Package 1       1 Package 1 Height                  57 cm Package 1 Width                  79 cm Package 1 Length                  27.5 cm Package 1 Weight                 32 kg
Warranty                         2 yearsÂ
