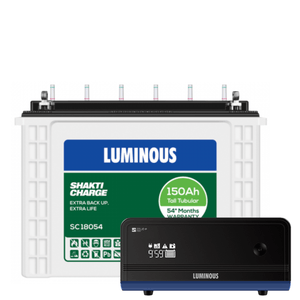

Luminous Inverter set Combo Zelio 1100 + Battery SC 18054

Luminous Inverter set Combo Zelio 1100 + Battery SC 18054  Description

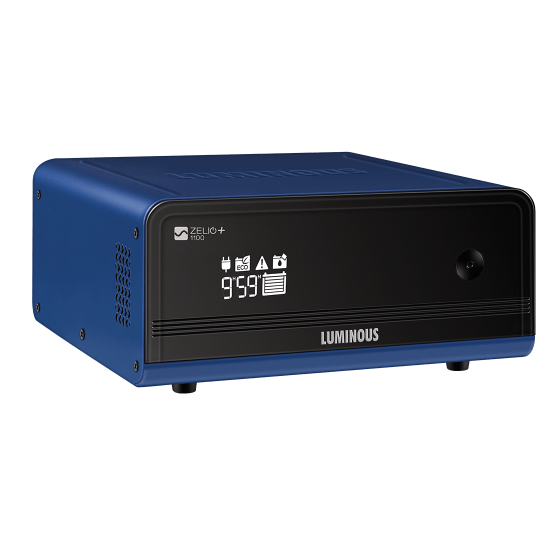

Luminous inverter battery set Zelio 1100+ SC 18054 is one of the highest selling products with longer life and better battery backup than most of the brands in market. This Inverter Battery set combo comes with Zelio+ 1100 pure sinewave inverter that has built in sensors for temperature and battery charging level. It has an LCD display that shows the present temperature of battery so that if it heats more, then the person can identify. It also displays the battery charging percentage. The battery Shakti Charge 18054 is a tall tubular 150 ah battery that provides a backup of more than 4 hours on full load.

Luminous Inverter set Combo Zelio 1100 + Battery SC 18054 Specification

Capacity - Inverter – 900 VA, Battery – 150 Ah

Running Load Combination - 5 CFL, 4 Tube light, 5 Ceiling Fan, 1 Television

Standard backup - 3-4 hours

Technology - Inverter – Sine Wave, Battery – Tubular plates

Warranty - Inverter – 24 months, Battery 36+18* months

Weight - Inverter – 8.8 Kg,

Operating Voltage - 100 V – 290 V

Battery Full Recharge Time - 10-12 hours

Protections - Overload, deep discharge, short-circuit, Reverse polarity, Input mains protection through MCB

Backup time*

Load - 500W  Duration - 1 hrs. 35 minute

Load - 400W  Duration - 2 hrs. 10 minute

Load - 300W  Duration - 3 hrs. 10 minute

Load - 200W  Duration - 5 hrs. 20 minute

Load - 100W  Duration - 13 hrs.

Technical details

Filled Weight - 49,5

Overall Dimensions of Containers (mm)

Length - 505  Width - 220  Height - 284

Boost Charging

Starting rate (Amp) - 12.1 Finishing rate (Amp) - 6.0

Trickle Mode Charging

Min.  (mA) - 101

Max (mA) - 403

Display Indications

• Mains available - yes
• Battery Charging - yes
• Voltage regulation display – yes
• Overload Indication – yes
• Low Battery Indication – yes

# Battery Estore ensures delivery of your product within 2-3 business days.

# If you are looking forward to get Luminous products installed. please  contact us.

* Back up time is Under Standard Test conditions, may vary depending upon load types, temperature and ageing.
