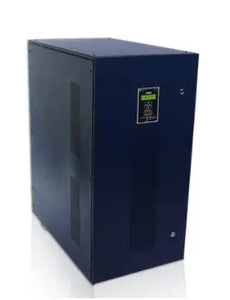

Luminous lift inverter 10.1 kva 120v liftverter 8

Luminous lift inverter 10.1 kva 120v liftverter 8 Description

Luminous Lift Inverter 10.1 Kva 120v LIFTVERTER 8 , the best choice for luxury power solutions in Delhi, Noida, Ghaziabad, Gurugram, and Faridabad. This high-quality product is available through our esteemed dealer network, offering the best service and support. Experience a reliable and efficient power source with a product that guarantees free installation and a special offer for our customers.
Elevate your living space with the Luminous Lift Inverter 10.1 Kva 120v LIFTVERTER 8 , the top-of-the-line power solution available in Delhi, Noida, Ghaziabad, Gurugram, and Faridabad. Trust in our reputable dealer network to provide you with the highest quality product, ensuring a seamless and hassle-free experience. Don't miss out on our exclusive offer and enjoy the luxury of uninterrupted power supply.
Transform your home with the Luminous Lift Inverter 10.1 Kva 120v LIFTVERTER 8 , the ultimate power solution for those in the know. Our dealer network offers a premium shopping experience, providing you with the best wholesale prices on this top-tier product. With free installation and a special offer included, there has never been a better time to upgrade to the shock-resistant Luminous LIFTVERTER.

Luminous lift inverter 10.1 kva 120v liftverter 8 Specifications

Load Capacity                                 10.1 KVA

 Recommended Motor Capacity    ~8* (HP)

Input supply                                    415 VAC, 3 Phases, 4 wire (+15%,-15%)

Input Frequency                              50Hz ±6%

Battery Voltage                                120V

Charger type                                    Bi-Directional

 Battery Charging current               Battery Charging Current up to 30A

Output current                                 16A

Input PF during Grid Charging      >0.99 when inverter loaded from 50% to 100%                                                              of Inverter capacity

Charging Battery Type                    Tubular/SMF/Lithium ion

Switching Element                           IGBT

Output waveform                            Pure Sine wave

Output Nominal Voltage                 415VAC ±2%,3Ph

Load Power Factor                           0.6 lag to 1(within kVA and KW rating)

Inverter Peak Efficiency                   90%

100% linear load              Mains mode: Same as Grid /Inverter mode:<5% Galvanic isolation                            Inbuilt isolation transformer at inverter output                                                              Inbuilt isolation transformer at inverter output

Voltage stability in Dynamic          Complies with IEC/EN 62040-3,Class1

condition

Overload Conditions                       110% for 60sec /125% for 10sec /150% for 1 sec Regenerative Drive Application     Suitable for Regenerative Drive (Lift Drive                                                                      Regen Power capacity confirmation require)

DG Compatibility                             1.5 times of Inverter Capacity

Change Over Time                           <3 milliseconds

Protection                                         Input Under and Over voltage, Input High and                                                               Low Frequency Output Over load, Output short                                                             circuit, Output over and Under voltage, Over                                                                 Temperature, Battery Over and Under voltage.

Display Parameter                           Grid - Voltage Current Power • Output - Voltage,                                             Current, Total Power, Load Percentage. Battery-                                                              Voltage, Current, DC Power •.Event log: Up to                                                                5No’s on LCD. (Optional : USB storage up to                                                                    1000no’s)

LED Indication                                  Grid ON/OFF, Grid Static Switch ON/OFF,                                                                        Inverter ON/OFF, Inverter static Switch ON/OFF,                                                            Load ON/OFF, Battery Charging and Discharging

Alarm                                                 Audible alarm for Fault conditions and                                                                           Warnings

Parameter Setting                             All main parameters can be set through LCD                                                                  display

BYPASS                                               Manual bypass switch available for                                                                                  maintenance and service

Degree Of protection                        IP 20

Dimension                                          710 x 300 x 790  (L*W*H) mm

Net Weight                                         120  Kg

Warranty                                             36 Month

Degree Of protection                        0-40˚C

Max. Relative humidity@25˚C          Up to 95%
(noncondensing)
Max. Altitude above sea level          Up to 1000 meter

without de-rating

Standard Compliance                           IEC 60068-2, IEC62040-3

Communication                                    Modbus RS 485- Optional
