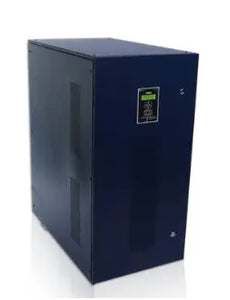

Luminous lift inverter 13.1 kva 180v liftverter 12

Luminous lift inverter 13.1 kva 180v liftverter 12 Description

The Luminous Lift Inverter 13.1 Kva 180v LIFTVERTER 12 , the best power solution for your upscale residential or commercial space. This state-of-the-art product is available at select dealers in Delhi, Noida, Ghaziabad, Gurugram, and Faridabad. Enjoy a seamless and reliable power supply with this elegant and efficient device, designed to elevate your lifestyle.
Step into a world of luxury and convenience with the Luminous Luminous Lift Inverter 13.1 Kva 180v LIFTVERTER 12. As the top distributor of this premium product, we offer exclusive deals and free installation services in Delhi, Noida, Ghaziabad, Gurugram, and Faridabad. Say goodbye to power outages and voltage fluctuations, as this cutting-edge device guarantees a smooth and uninterrupted electricity supply for your home or office.

Luminous lift inverter 13.1 kva 180v liftverter 12 Specifications

Load Capacity                                 13.1 Kva

 Recommended Motor Capacity    ~12* (HP)

Input supply                                    415 VAC, 3 Phases, 4 wire (+15%,-15%)

Input Frequency                              50Hz ±6%

Battery Voltage                               180V

Charger type                                    Bi-Directional

 Battery Charging current               Battery Charging Current upto 30A

Output current                                 21A

Input PF during Grid Charging      >0.99 when inverter loaded from 50% to 100%                                                              of Inverter capacity

Charging Battery Type                    Tubular/SMF/Lithium ion*

Recommended Tubular Battery     100Ah & Above for tubular

Switching Element                           IGBT

Output waveform                            Pure Sine wave

Output Nominal Voltage                 415VAC ±2%,3Ph

Load Power Factor                           0.6 lag to 1(within kVA and KW rating)

Inverter Peak Efficiency                   90%

100% linear load            Mains mode: Same as Grid /Inverter mode:<5% Galvanic isolation                            Inbuilt isolation transformer at inverter output                                                              Inbuilt isolation transformer at inverter output

Voltage stability in Dynamic          Complies with IEC/EN 62040-3,Class1

condition

Overload Conditions                       110% for 60sec /125% for 10sec /150% for 1 sec Regenerative Drive Application     Suitable for Regenerative Drive (Lift Drive                                                                      Regen Power capacity confirmation require)

DG Compatibility                             1.5 times of Inverter Capacity

Change Over Time                           <3 milliseconds

Protection                                         Input Under and Over voltage, Input High and                                                               Low Frequency Output Over load, Output short                                                             circuit, Output over and Under voltage, Over                                                                 Temperature, Battery Over and Under voltage.

Display Parameter                           Grid - Voltage Current Power • Output - Voltage,                                                            Current, Total Power, Load Percentage. Battery-                                                             Voltage, Current, DC Power •.Event log: Up to                                                               5No’s on LCD. (Optional : USB storage up to                                                                   1000no’s)

LED Indication                                   Grid ON/OFF, Grid Static Switch ON/OFF,                                                                         Inverter ON/OFF, Inverter static Switch ON/OFF,                                                             Load ON/OFF, Battery Charging and Discharging

Alarm                                                 Audible alarm for Fault conditions and                                                                            Warnings

Parameter Setting                             All main parameters can be set through LCD                                                                  display

BYPASS                                                Manual bypass switch available for                                                                                 maintenance and service

Degree Of protection                        IP 20

Dimension                                          710 x 300 x 790  (L*W*H) mm

Net Weight                                         120  Kg

Warranty                                            36 Month

Degree Of protection                         0-40˚C

Max. Relative humidity@25˚C            Up to 95%
(noncondensing)
Max. Altitude above sea level           Up to 1000 meter

without de-rating

Standard Compliance                          IEC 60068-2, IEC62040-3

Communication                                   Modbus RS 485- Optional
