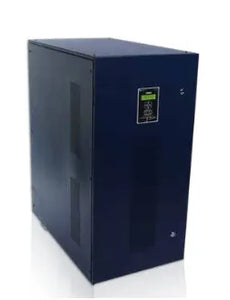

Luminous lift inverter 35 kva 360v liftverter 30

Luminous lift inverter 35 kva 360v liftverter 30 Description

Transform your power supply with the Luminous Lift Inverter 35 kva LIFTVERTER 30 360V, known for its superior performance and durability. Our authorized dealer network serves businesses in Delhi, Noida, Ghaziabad, Gurugram, and Faridabad, providing expert guidance and unbeatable offers. Take advantage of our free consultation to find the perfect solution for your needs. Shop now at our wholesale distributor and experience the ultimate power shock!

Luminous lift inverter 35 kva 360v liftverter 30 Specifications

System Rating                                 35 kva

 Recommended Motor Capacity    ~30* (HP)

Input supply                                    415 VAC, 3 Phases, 4 wire (+15%,-15%)

Input Frequency                              50Hz ±6%

Battery Voltage                                360V

Charger type                                    Bi-Directional

 Battery Charging current               Battery Charging Current up to 30A

Output current                                 57A

Input PF during Grid Charging      >0.99 when inverter loaded from 50% to 100%                                                              of Inverter capacity

Charging Battery Type                    Tubular/SMF/Lithium ion*

Recommended Tubular Battery     100Ah & Above for tubular

Switching Element                           IGBT

Output waveform                            Pure Sine wave

Output Nominal Voltage                 415VAC ±2%,3Ph

Load Power Factor                           0.6 lag to 1(within kVA and KW rating)

Inverter Peak Efficiency                   90%

Vthd with 100% linear load            Mains mode: Same as Grid /Inverter mode:<5% Galvanic isolation                            Inbuilt isolation transformer at inverter output                                                              Inbuilt isolation transformer at inverter output

Voltage stability in Dynamic          Complies with IEC/EN 62040-3,Class1 condition

Overload Conditions                       110% for 60sec /125% for 10sec /150% for 1 sec Regenerative Drive Application     Suitable for Regenerative Drive (Lift Drive                                                                      Regen Power capacity confirmation require)

DG Compatibility                             1.5 times of Inverter Capacity

Change Over Time                           <3 milliseconds

Protection                                         Input Under and Over voltage, Input High and                                                               Low Frequency Output Over load, Output short                                                             circuit, Output over and Under voltage, Over                                                                 Temperature, Battery Over and Under voltage.

Display Parameter                           Grid - Voltage Current Power • Output - Voltage,                                            Current, Total Power, Load Percentage. Battery-                                                            Voltage, Current, DC Power •.Event log: Up to                                                                5No’s on LCD. (Optional : USB storage up to                                                                  1000no’s)

LED Indication                                  Grid ON/OFF, Grid Static Switch ON/OFF,                                                                         Inverter ON/OFF, Inverter static Switch ON/OFF,                                            Load ON/OFF, Battery Charging and Discharging

Alarm                                                 Audible alarm for Fault conditions and                                                                           Warnings

Parameter Setting                             All main parameters can be set through LCD                                                                  display

BYPASS                                               Manual bypass switch available for                                                                                  maintenance and service

Degree Of protection                        IP 20

Dimension                                          925 x 535 x 1190  (L*W*H) mm

Net Weight                                         295  kg

Degree Of protection                        0-40˚C

Max. Relative humidity@25˚C          Up to 95%
(noncondensing)
Max. Altitude above sea level          Up to 1000 meter

without de-rating

Standard Compliance                           IEC 60068-2, IEC62040-3

Communication                                    Modbus RS 485- Optional

Warranty                                              36 Month
