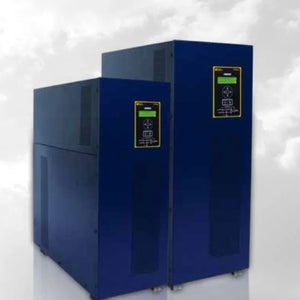

Luminous solar inverter hybrid  tx 20 kva 240v Description
Welcome to our shop where you can get the best Luminous Hybrid Solar Inverter TX 20 KVA 240V This innovative product is perfect for homes and businesses in Delhi, Noida, Ghaziabad, Gurugram, and Faridabad. As an authorized dealer, we offer free installation and a special discount for wholesale buyers. Don't miss out on this amazing offer!
Luminous solar inverter hybrid  tx 20 kva 240v SpecificationsÂ
Display:-
Parameter "Grid-Voltage Current Power* Output voltage, Current total Power, Load Percentage. Battery - voltage, current DC Power* Solar-Voltage, Current Power, Statistics — KWH (Grid import, Grid Export, Inverter Battery IN and OUT, Solar) Event log (5 No’s/option USB Storage up to t000 no’s)"
System Rating                20 KVA Open circuit voltage           500V
Dimensions (in cms)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 77*40*88 CM
Weight                       154 Kg
Warranty                     24 Month
Maximum PV Power           20KVA Charge Controller              MPPT Charge Controller Switching Element             IGBT Type of Charger               MPPT Charger Efficiency             »95% Input Supply                  4I5 VAC, 3 Phase, 4 wire (+15% , —15%) Input Frequency               50Hz   ±6% Battery Voltage               240 VAC Grid charger type              Bi- Directional Charging current from grid     20A for 200AH Battery or, as required by any                                 other battery (upto inverter KVA Capacity) Battery Type                  Lead Acid/SMF/Lithium ion* Switching Element             IGBT Output waveform              Pure Sine Wave Output Nominal Voltage       4I5VAC  ±2%, 3Ph Output Frequency             50Hz ±1% Load Power Factor             0.6 lag to 1 (within VA and KW rating) Inverter Peak Efficiency         90% Vth with 100% linear load      Mains mode: Same as Grid inverter mode «3% Galvanic isolation              Inbuilt isolation transformation inverter output Overload conditions            110% for 60 sec/125% for 10 sec/150% for 1 sec Protection                     Input Under and Over voltage, Input Under and                              Over Frequency,Output Overlord, Output short                               circuit,Output over and Under Voltage"                              Over Temperature Array Reverse Polarity,                                   Battery Over and Under voltage LED Indication                 Grid ON/OFF, Grid Static switch ON/OFF,                                    inverter ON/OFF, inverter static Switch                                      ON/OFF, Load ON/OFF, Battery Charging and                                 Discharging" Alarm                         Audible alarm fault conditions and warnings Modes                        2 different priority modes selectable from                                  display (Solar-Battery—Grid) & (Solar-Grid—                                 Battery) Parameter Setting              All main Parameters can be set through                                      LCD Display Bypass                        Manual bypass switch available for                                          maintenance and service Degree of protection           IP 20 Cooling                        Forced Air Cooling Color                          RAL 5013 Cobalt Blue Dimensions                     770 x 400 x 880 (L*W*H)mm Net Weight                     154 Kgs Temperature Operating          0-40° C "Max. Relative humidity 25°      Upto 95% (non condensing) "Max. Altitude above sea          Up to 1000 mtr
