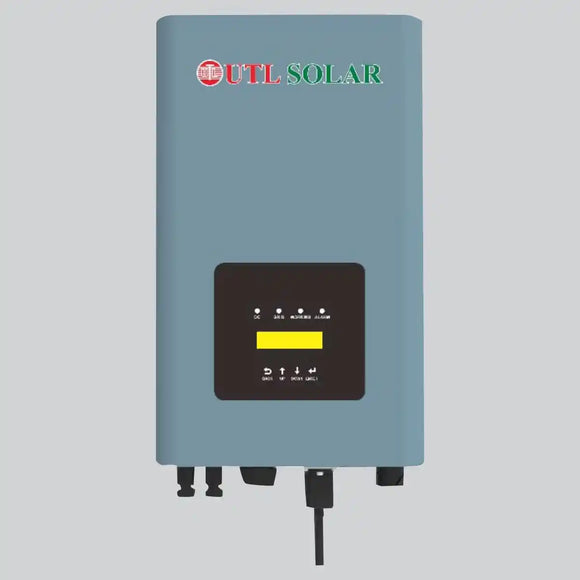

UTL on grid solar inverter 15 kw

UTL on grid solar inverter 15 kw Description

Our top-of-the-line 15 kW UTL On Grid Solar Inverter, a powerful and efficient solution for your solar energy needs. This inverter is designed to deliver reliable performance, seamless grid connectivity, and maximum energy yield. The sleek and compact design makes it easy to install and maintain.
At a competitive price, this 15 kW UTL On Grid Solar Inverter is the perfect choice for residential, commercial, and industrial applications. With its advanced features and high efficiency, you can trust this inverter to meet your energy requirements with ease.
As a trusted wholesale distributor in Delhi, Noida, Ghaziabad, Gurugram, and Faridabad, we offer the best deals on our solar inverters. Contact us today to avail of special offers and discounts on bulk purchases. Buy now and experience the benefits of clean and sustainable energy.

UTL on grid solar inverter 15 kw Specifications

Brand                                         UTL

Modal No                                  UTL 15 F3 GT

Max. DC Input Power               19.5 KW

Max. DC Input Voltage             1000 V

Start Up DC Input Voltage        140 V

MPPT Operating Range           120~850 V

Max. DC Input Current             13+26 A

Max. Short Circuit Current       19.5+39 A

No. of MPP Tracker                   2

No. of String par MPP Tracker 1+2

Rated Output Power                  15 KW

Max. Active Power                     16.5 KW

Nominal Output Voltage           3L/N/PE 220/380,230/400V                                                                     (Optional)

Rated Grid Frequency                50/60 Hz (Optional)

Operating Phase                        3 Phase

Rated AC Grid Output Current  22.7/21.7 A

Max. AC Output Current            25/23.9 A

Output Power Factor                  0.8 leading to 0.8 lagging

Grid Current                                 <3%

DC Injection Current                    <0.5% (mA)

Grid Frequency Range                 50/60Hz

Max. Efficiency                             98.3%

Euro Efficiency                              97.5%

MPPT Efficiency                            >99%

DC Reverse-Polarity Protection    Yes

AC Short Circuit Protection           Yes

AC Output Overcurrent                 Yes

Output Overvoltage Protection    Yes

Insulation Resistance Protection   Yes

Ground Fault Monitoring               Yes

Anti-islanding Protection               Yes

Temperature Protection                  Yes

Integrated DC Switch                       Yes

Remote Software Update                Yes

Remote Change of                           Yes

Surge Protection                              DC Type II/AC Type II (Rating Up to 20 KA)

Size                                                    333x472x202 mm (LxDxW)

Weight                                               15 kg

Technology                                         Transformer less

Internal Consumption                      <1W (Night)

Running Temperature                      -25~65 C, >45C Derating

Ingress Protection                             IP65

Noise Emission (Typical)                   <35 dB

Cooling Concept                                 Natural Cooling

Warranty                                              7 Years,10 Years (Optional)

DC Connection                                     MC-4 Matabele

AC Connection                                     IP65 Rated Plug

Display                                                  LCD 1602

Interface                                                RS485/RS232/Wi-fi/LAN
