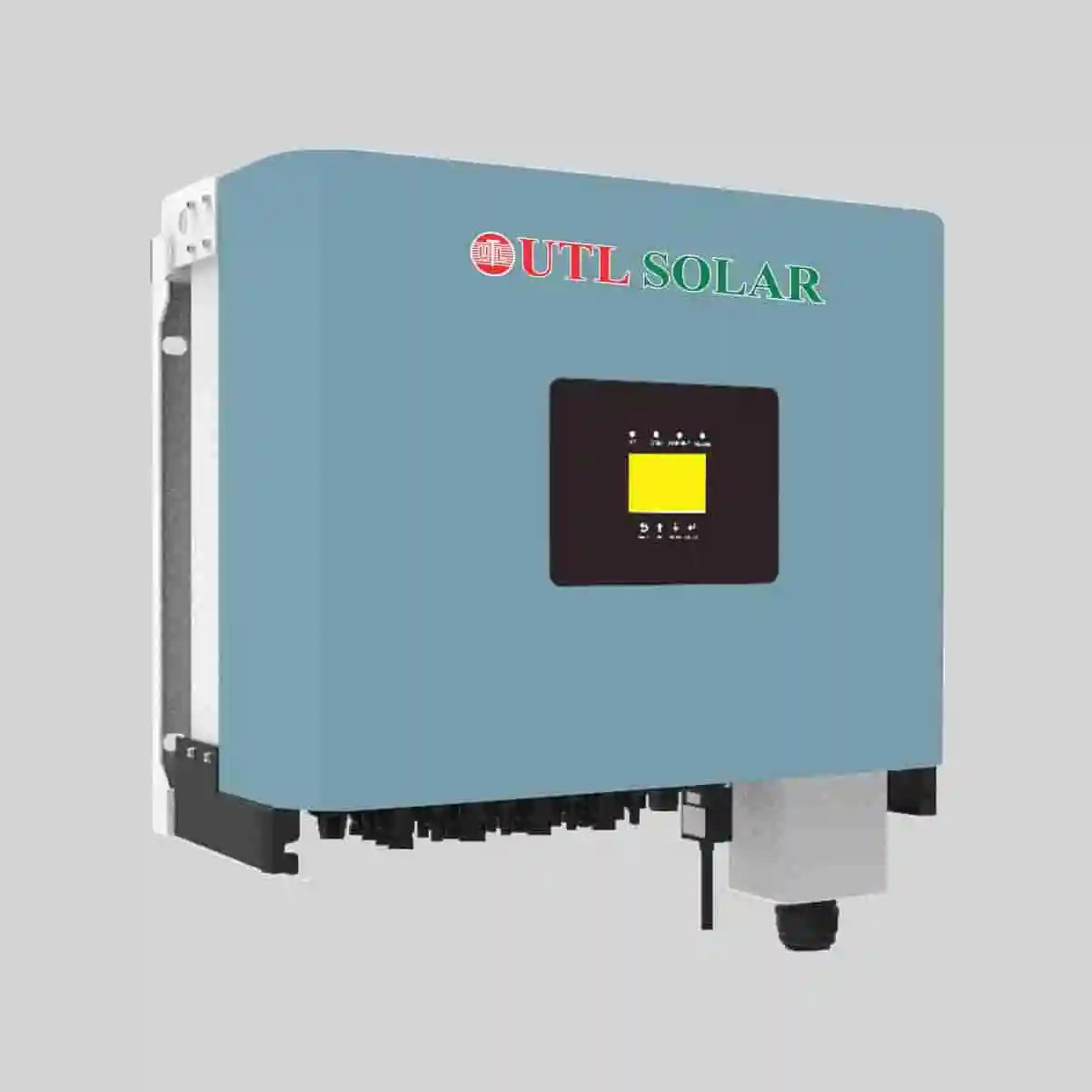

SolarUTL on grid solar inverter 60 kw Description
60 kW UTL On Grid Solar Inverter, the perfect solution for residential and commercial solar power systems. With a power output of 60 kW, this inverter is designed to efficiently convert solar energy into usable electricity. The price of this high-quality inverter is competitive, making it a cost-effective choice for those looking to harness the power of the sun. we offer best dealer & wholesale price in delhi , noida , faridabad , gurgaon , ghaziabad. Free delivery service.
UTL on grid solar inverter 60 kw Specifications
Model UTL 60 F3 GT
System Rating 60kVA – 3 Phase
Max. DC Power 78kW
Max. DC Voltage/Nominal DC Voltage 1000V
MPPT Voltage Range 250V – 950V
Full Load Voltage Range 500V-800V
Normal DC Voltage 620V
Min./Start DC Voltage 200V – 250V
No. of MPP Trackers 3
Strings as per MPP Tracker 4
Max. Input Current per 40A
Normal AC Output Power 60kW
Max. AC Output Power 66kW
Normal AC Voltage 400V
AC Voltage Range 400V ± 20%
Normal AC Grid Frequency 50/60Hz
AC Grid Frequency Range 50/60Hz (± 5Hz)
Rated Output Current 87A
Max. Output Current 80A
THDI <3%
AC Connection 3W+N+PE/3W+P E
Technology Transformer less
Maximum Efficiency 98.6%
Euro-eta 98.2%
All-Pole Fault Current Yes
Ground Fault Monitoring Yes
Operating Temperature -25°C to +60°C
Noise Emission <60dB
Protection Rating IP65
LCD Display Yes
Cooling Concept Fans
Interfaces RS485/Wi-Fi
Dimension 636X958X260 mm
Weight 68 kg
Warranty 10 Years
